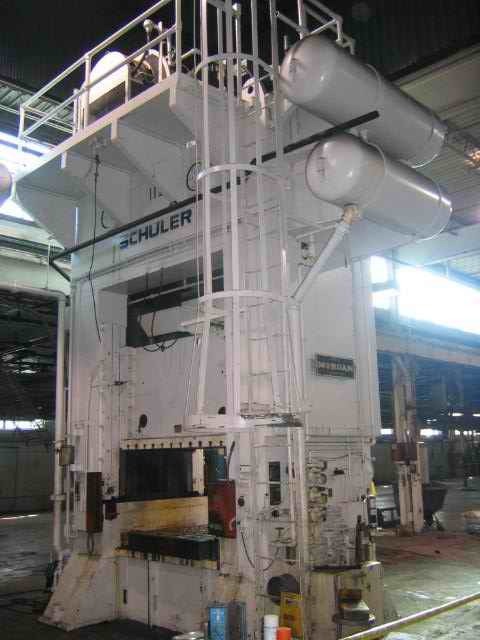

1 – USED 400 TON SCHULER STRAIGHT SIDE DOUBLE CRANK PUNCH PRESS
14273

1 – USED 400 TON SCHULER STRAIGHT SIDE DOUBLE CRANK PUNCH PRESS
STOCK NO. 14273
S/N 1019
Mfg. 1974
Model S2-400-72-48
400 Ton Rating
18” Stroke
72” x 48” T-Slotted Bolster Plate
72” x 48” T-Slotted Ram Face
35” Shut Height, SDAU
12” Power Ram Adjustment
16 SPM
32” x 20” Windows, Est.
31” Bed To Floor
7-1/2” Thick Bolster Plate
Two 8” Stroke 75 Ton Cushions @ 100 PSI
Pit Required, 18” Deep Less Cushion Or 30” Deep Pit
With Cushions
Floor Space: 160” W x 130” D. Est. x 22’1” From Floor
Weight: 150,000 Lbs., Est.
Complete With 50 HP 440/3/60 Main Drive Motor, 10 HP 440/3/60
Ram Adjustment Motor, Electrical/Air Controls, Air Clutch, Air
Brake, Air Counterbalance, Die Cushions, Double Gear Guards,
Trabon Lubrication System, Double Palm Button Control Stand,
Link Light System, (4) Air Tanks, And Factory Service Manual.
Good Condition – As Taken From Service – Plant Closed
Price, FOB Tennessee Location P.O.R.
NOTE: Press Could Be Floor Standing Less Cushion, Put 18”
Blocks Under Feet, But Overall Height Would Raise By 18”.
