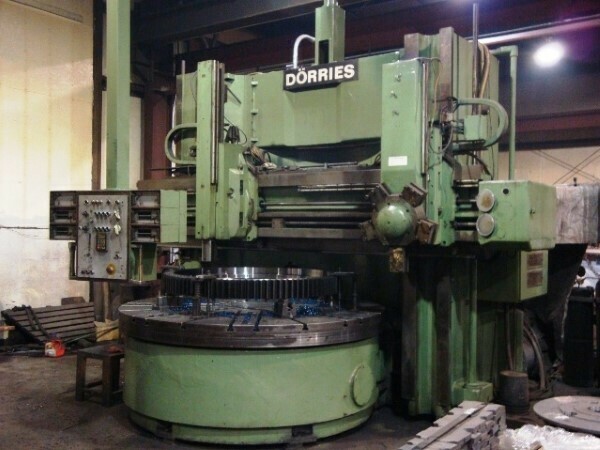

1 - USED 98” DORRIES VERTICAL BORNING MILL TURRET LATHE
+3

1 – USED 98” DORRIES VERTICAL BORNING MILL TURRET LATHE

SKU C-6220
In stock
1
Product Details
  • 98.5” 4-Jaw Chuck Diameter
  • 110” Side Dead Down Maximum Swing
  • 85” Height Under Rail
  • 110,000 Lb. Table Load Capacity
  • 61” Cross Travel Of Ram Head
  • 42” Vertical Travel Of Ram Head
  • 70” Maximum Capacity Under Tool
  • No Side Head
  • 112 RPM Table Speeds
  • 75 HP Main Drive Motor
  • 480/3/60 Current Electrical Arrangement
  • Complete With 98” 4-Jaw Chuck, (1) Swiveling Ram Head, (1) 5-Position Swiveling Turret Head, Full Pendant With Digital Readout, Baldor Variable Drive, Coolant Tank, Flush Floor And Threading.
  • Machine Dimensions: 210” LR X 198” FB X 141” H
  • Machine Weight: 75,000 Lbs.
